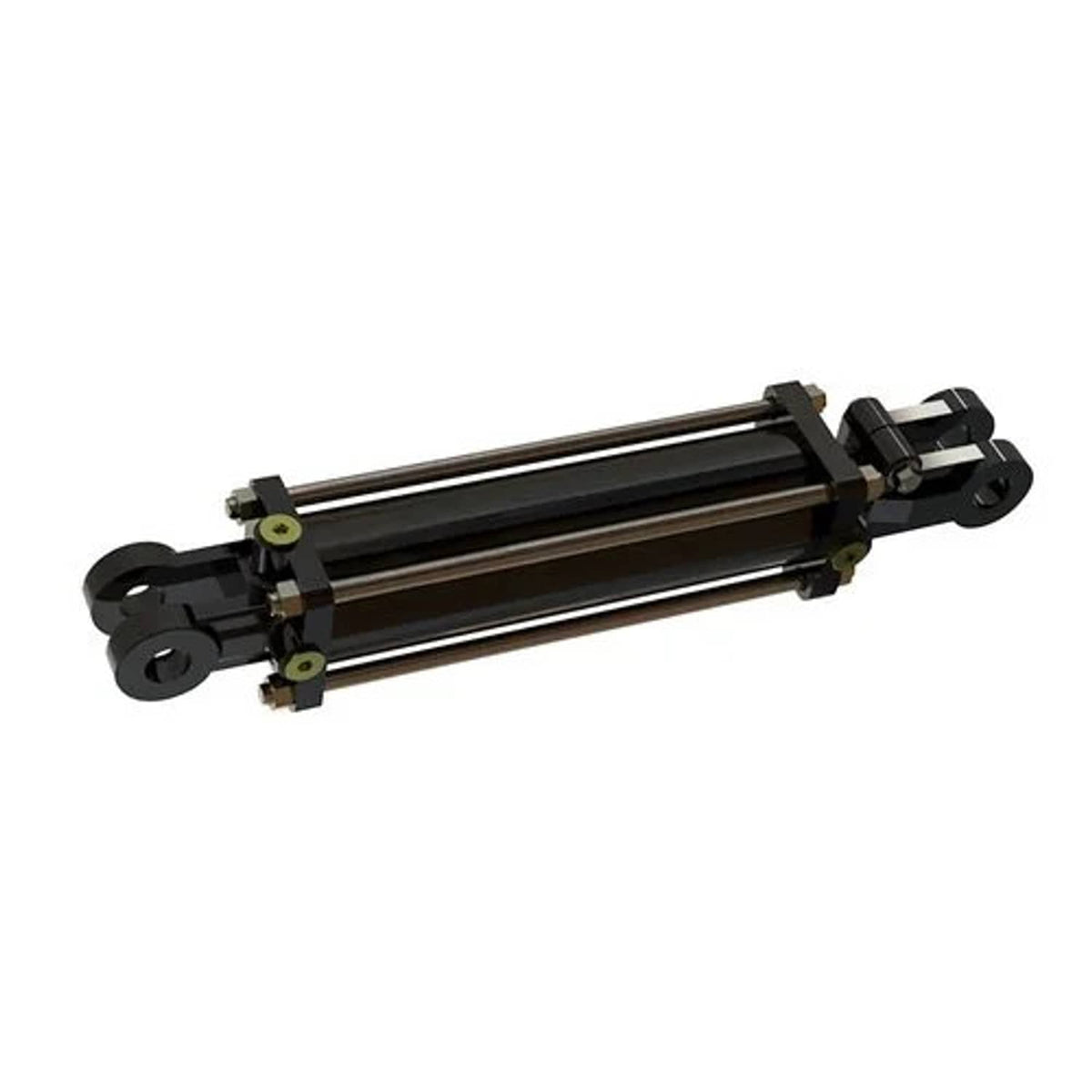

Prince Hydraulic Tie-Rod Cylinder 3-1/2" x 16" ASAE 1-1/4" Rod 3000 PSI

Prince Hydraulic Tie-Rod Cylinder 3-1/2" Bore x 16" Stroke

This Prince hydraulic tie-rod cylinder is a 3-1/2 inch bore, 16 inch stroke hydraulic cylinder with an ASAE 1-1/4 inch rod and a 3000 PSI pressure rating. It is a general-purpose hydraulic cylinder used to convert fluid power into linear force and motion in hydraulic equipment. The tie-rod design uses threaded rods to hold the end caps to the cylinder barrel, which allows the cylinder to be serviced.

Product Details

• Brand: Prince
• Bore: 3-1/2"
• Stroke: 16"
• Rod Diameter: ASAE 1-1/4"
• Pressure Rating: 3000 PSI
• Type: Hydraulic tie-rod cylinder

Frequently Asked Questions

Q: What do the bore and stroke measurements mean on this cylinder? A: The 3-1/2 inch bore is the inside diameter of the cylinder barrel, and the 16 inch stroke is the distance the rod travels. Both measurements should be matched to the cylinder being replaced.

Q: What should I check before ordering this Prince cylinder? A: Confirm the bore, stroke, rod diameter, port arrangement, mounting style, and rated pressure match your equipment requirements, since the title information alone may not cover every mounting detail.

Confirm the complete device or equipment model before purchase.
