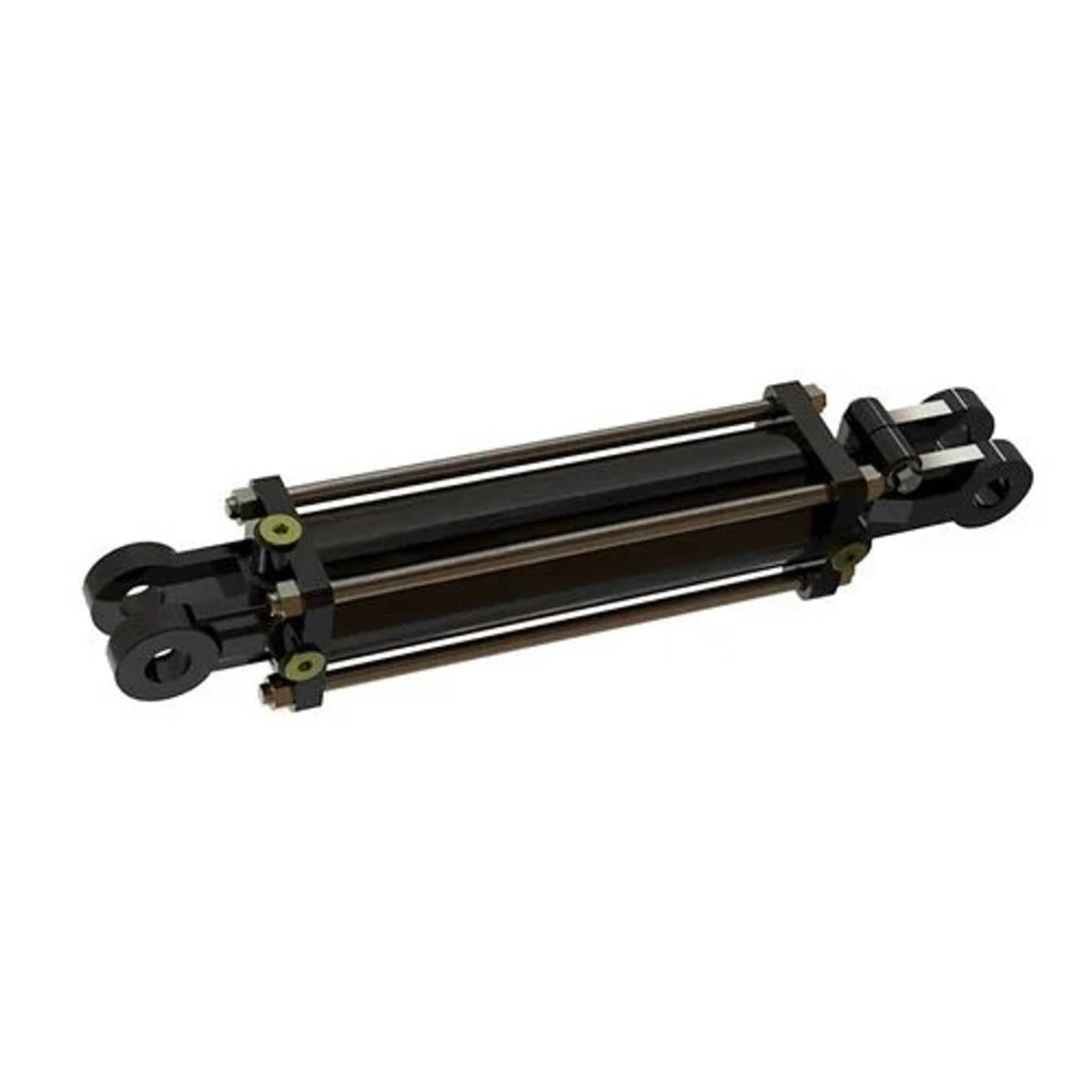

Prince Hydraulic Tie-Rod Cylinder 3" x 12" 1-1/4" Rod 3000 PSI

Prince Hydraulic Tie-Rod Cylinder 3" x 12" with 1-1/4" Rod

This Prince hydraulic tie-rod cylinder is a double-acting style hydraulic cylinder with a 3 inch bore, 12 inch stroke, and 1-1/4 inch rod, rated at 3000 PSI. Tie-rod cylinders are commonly used to convert hydraulic pressure into linear force in equipment and machinery. Confirm the bore, stroke, rod diameter, pressure rating, and port and mounting configuration match your application before ordering.

Product Details

• Product Type: Hydraulic tie-rod cylinder
• Bore: 3"
• Stroke: 12"
• Rod Diameter: 1-1/4"
• Pressure Rating: 3000 PSI
• Brand: Prince

Frequently Asked Questions

Q: What does the 3" x 12" sizing mean on this cylinder? A: The 3 inch figure is the cylinder bore and the 12 inch figure is the stroke length, with a 1-1/4 inch rod and a 3000 PSI rating.

Q: How do I check this cylinder fits my equipment? A: Compare the bore, stroke, rod diameter, pressure rating, and mounting and port arrangement against your equipment specifications before purchase.
